P波段本振系统  P Band Lo Convertor

工作频率  162.5MHz

Working frequency: 162.5MHz

• 适用于P波段超导加速器低电平前端
  Suitable for p-band superconducting accelerator low level front end
• 集成Lo、RF、CLK频率转换与前端
  Integrate Lo, RF, CLK frequency conversion and front-end
• 标准19英寸2U机箱
  Standard 19-inch 2U case
• 供电电压 AC 220V
  Power supply voltage AC 220V

SMX P波段本振系统典型指标

"型号Part Number"	典型工作频率Lo	典型工作频率IF	典型时钟频率 (MHz)	输出功率 （dBm）	输出通道 数量	时间抖动恶化jitter add. 10Hz-10MHz	功率稳定度
SDW6UW2-162	162.5	25	100	15	2-8	≤10fs	≤0.02%
SDW6UW2-325	325	25	100	15	2-8	≤10fs	≤0.02%

说明 Notes
以上指标为典型值，此系列产品部分参数可定制
The above indicators are typical values, and some parameters of this series of products can be customized



• 可定制本振、时钟频率
  Customizable local oscillator and clock frequency
• 各频率信号相互锁相
  The frequency signals lock each other
• 极低的附加抖动恶化
  Extremely low additional jitter deteriorates
• 可定制多通道输出
  Customizable multichannel output
• 集成RF前端功能
  Integrate RF front-end functionality

说明 Notes

该产品为定制设计产品，详细细节请联系厂家

This product is custom-designed. Please contact the manufacturer for details

S、C、X波段本振系统  S/C/X Band Lo Convertor

工作频率  11.424GHz

Working frequency: 11.424GHz

• 适用于X波段直线加速器低电平前端
  Suitable for X – band linear accelerator low level front end
• 可实现Lo、RF、CLK频率转换
  Can achieve Lo, RF, CLK frequency conversion 41
• 标准19英寸2U机箱
  Standard 19-inch 2U case
• 供电电压 AC 220V
  Supply voltage AC 220V

SMX S C X波段本振系统典型指标

型号 Part Number	典型工作频率Lo	典型工作频率IF	典型时钟频率 (MHz)	输出功率 （dBm）	输出通道 数量	时间抖动恶化jitter add. 10Hz-10MHz	功率稳定度
SMX-S3	2829.56	26.44	105.76/238	15	2-8	≤3fs	≤0.02%
SMX-C6	5685.56	26.44	105.76/238	15	2-8	≤3fs	≤0.02%
SMX-X11	11397.56	26.44	105.76/238	15	2-8	≤3fs	≤0.02%

说明 Notes
以上指标为典型值，此系列产品部分参数可定制
The above indicators are typical values, and some parameters of this series of products can be customized

















• 可定制本振、时钟频率
  Customizable local oscillator and clock frequency
• 各频率信号相互锁相
  The frequency signals lock each other
• 极低的附加抖动恶化
  Extremely low additional jitter deteriorates
• 可定制多通道输出
  Customizable multichannel output

说明 Notes

该产品为定制设计产品，详细细节请联系厂家

This product is custom-designed. Please contact the manufacturer for details

S波段频率合成系统

 S Band RF Generator

主要工作频率  2856GHz

Main operating frequency: 2856GHz

• 适用于S波段直线加速器微波多种频率合成
  It is suitable for microwave synthesis of s-band linear accelerator
• 定制多个频率相互锁相
  Customize multiple frequency interlocking phases
• 精密控温装置
  Precision temperature control device
• 标准19英寸3U机箱
  Standard 19-inch 3U case
• 供电电压 AC 220V
  Power supply voltage AC 220V

SFS-S-C02典型指标

输入信号	输出信号	输出信号	输出信号	输出信号	输出信号	输出信号	输出信号	输出信号	输出信号	输出信号
476M	476M功分	449.56M	476M	79.3M	79.3M	105.78M	26.44M	2856M	2829.56M	相位测试476M
5~10dBm	-1dBm	11dBm	13dBm	10dBm	22dBm	11dBm	-10dBm	15dBm	13dBm	-1dBm

以上指标为典型值，此系列产品部分参数可定制
The above indicators are typical values, and some parameters of this series of products can be customized





















图中为频率合成系统搭配脉冲放大器阵列使用效果

The effect of frequency synthesis system with pulse amplifier array is shown in the figure

• 基准信源可定制多频点，各频点相位锁定
  The reference source can be customized with multiple frequency points and each frequency point phase locked
• 高稳定性
  High stability
• 集成化设计，内置精确控温装置，半导体控温装置精度02℃
  Integrated design, with accurate temperature control device, semiconductor precision 02 ℃ temperature control device
• 可定制多通道输出
  Customizable multichannel output

说明 Notes

该产品为定制设计产品，详细细节请联系厂家

This product is custom-designed. Please contact the manufacturer for details

C波段基准信源系统

  C Band RF Generator

主要工作频率  5712GHz

The main operating frequency is 5712GHz

• 适用于C波段直线加速器微波基准信号源
  Suitable for C band linear accelerator microwave reference signal source
• 抖动≤40fs
  Jitter acuities were 40 fs
• 标准19英寸2U机箱
  Standard 19-inch 2U case
• 供电电压 AC 220V<
  Supply voltage AC 220V

SFS-SC2典型指标

"型号Part Number"	工作频率F1(GHz)	工作频率F2(GHz)	输出功率Pout(dBm)	杂波Spurious (dB)	谐波Harmonics（dB）	时间抖动Jitter（fs）10Hz-10MHz	稳定度Aging
SFS-SC2	5712	79.333	15	≤-70	≤-50	≤40@5712M	≤1E-8/year

说明 Notes
以上指标为典型值，此系列产品部分参数可定制
The above indicators are typical values, and some parameters of this series of products can be customized



相位噪声参数Phase noise parameter















• 基准信源可定制多频点，各频点相位锁定
  The reference source can be customized with multiple frequency points and each frequency point phase locked
• 高稳定性
  High stability
• 优于宽频带信号源仪器的相位噪声特性与性价比
  Better than broadband signal source instrument phase noise characteristics and cost performance
• 可定制多通道输出
  Customizable multichannel output

说明 Notes

该产品为定制设计产品，详细细节请联系厂家

This product is custom-designed. Please contact the manufacturer for details

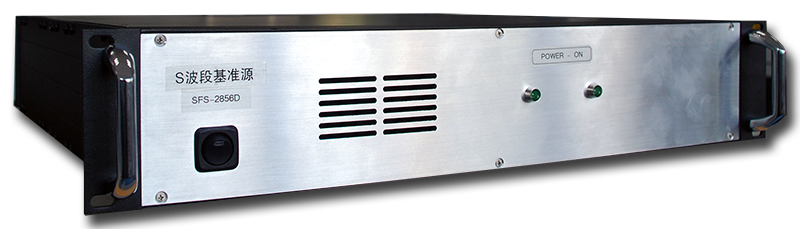

S波段基准信源系统

 S Band RF Generator

主要工作频率  2856GHz

Main operating frequency: 2856GHz

• 适用于S波段直线加速器微波基准信号源
  S band linear accelerator microwave reference signal source
• 抖动≤40fs
  Jitter acuities were 40 fs
• 标准19英寸2U机箱
  Jitter acuities were 40 fs
• 供电电压 AC 220V
  Supply voltage AC 220V

SFS-2856D典型指标

"型号Part Number"	工作频率F1(GHz)	工作频率F2(GHz)	输出功率Pout(dBm)	杂波Spurious (dB)	谐波Harmonics（dB）	时间抖动Jitter（fs）10Hz-10MHz	稳定度Aging
SFS-2856D	2856	79.333	15	≤-70	≤-50	≤40@2856M	≤1E-8/year

说明 Notes
以上指标为典型值，此系列产品部分参数可定制
The above indicators are typical values, and some parameters of this series of products can be customized

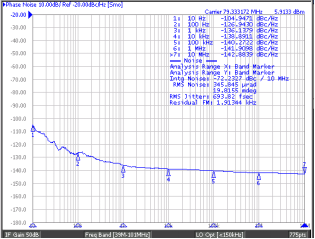

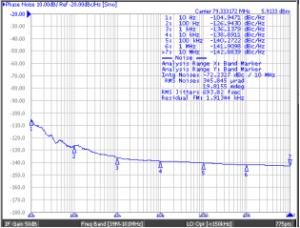

相位噪声参数Phase noise parameter















• 基准信源可定制多频点，各频点相位锁定
  The reference source can be customized with multiple frequency points and each frequency point phase locked
• 高稳定性
  High stability
• 优于宽频带信号源仪器的相位噪声特性与性价比
  Better than broadband signal source instrument phase noise characteristics and cost performance
• 可定制多通道输出
  Customizable multichannel output

说明 Notes

该产品为定制设计产品，详细细节请联系厂家

This product is custom-designed. Please contact the manufacturer for details
