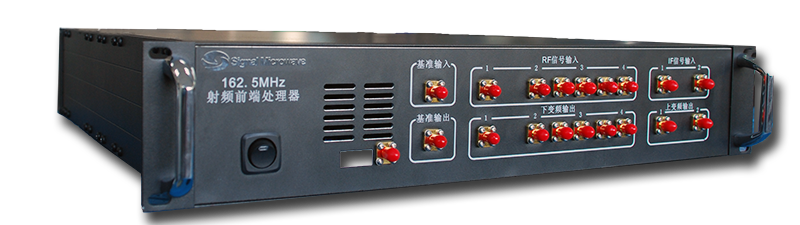

P波段本振系统 P Band Lo Convertor
工作频率 162.5MHz
Working frequency: 162.5MHz
- 适用于P波段超导加速器低电平前端
Suitable for p-band superconducting accelerator low level front end - 集成Lo、RF、CLK频率转换与前端
Integrate Lo, RF, CLK frequency conversion and front-end - 标准19英寸2U机箱
Standard 19-inch 2U case - 供电电压 AC 220V
Power supply voltage AC 220V
SMX P波段本振系统典型指标
| "型号Part Number" | 典型工作频率Lo | 典型工作频率IF | 典型时钟频率 (MHz) | 输出功率 （dBm） | 输出通道 数量 | 时间抖动恶化jitter add. 10Hz-10MHz | 功率稳定度 |
|---|---|---|---|---|---|---|---|
| SDW6UW2-162 | 162.5 | 25 | 100 | 15 | 2-8 | ≤10fs | ≤0.02% |
| SDW6UW2-325 | 325 | 25 | 100 | 15 | 2-8 | ≤10fs | ≤0.02% |
以上指标为典型值，此系列产品部分参数可定制
The above indicators are typical values, and some parameters of this series of products can be customized
- 可定制本振、时钟频率
Customizable local oscillator and clock frequency - 各频率信号相互锁相
The frequency signals lock each other - 极低的附加抖动恶化
Extremely low additional jitter deteriorates - 可定制多通道输出
Customizable multichannel output - 集成RF前端功能
Integrate RF front-end functionality
说明 Notes
该产品为定制设计产品，详细细节请联系厂家
This product is custom-designed. Please contact the manufacturer for details
