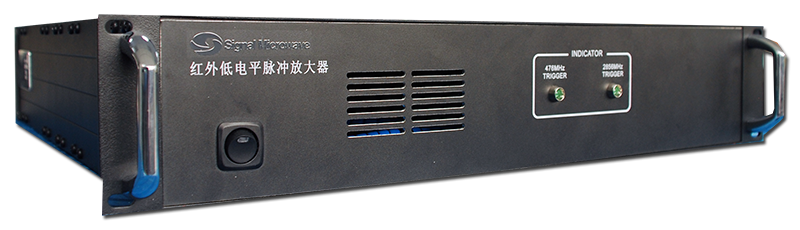

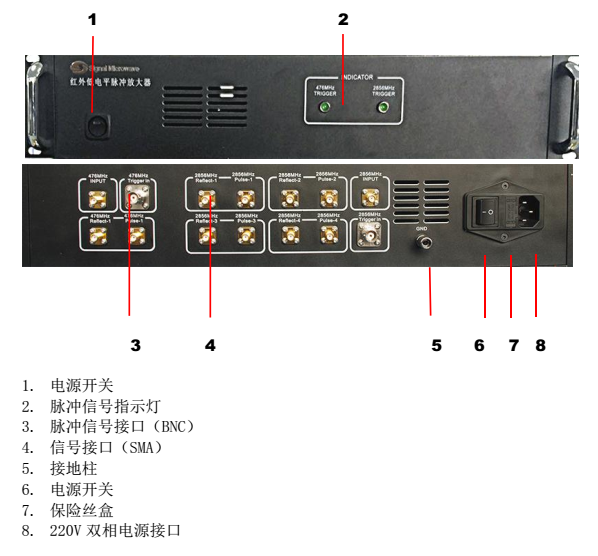

PPA-C02 脉冲放大器
PPA-C02 pulse amplifier
- 适用于脉冲信号放大调制
Suitable for pulse signal amplification and modulation - 多通道
The multichannel - 标准19英寸2U机箱
Standard 19-inch 2U case - 供电电压 AC 220V
Supply voltage AC 220V
| 输入信号 | 输出信号 | |||||
|---|---|---|---|---|---|---|
| 2856M | 476M | TTL trigger | 2856M-pulse 3路 | 2856M-reflect 3路 | 476M-pulse 1路 | 476M-reflect 1路 |
| 10~12dBm | 10~12dBm | 0~5V | 13dBm | 反射监测功能 | 15dBm | 反射监测功能 |
以上指标为典型值，此系列产品部分参数可定制
The above indicators are typical values, and some parameters of this series of products can be customized
图中为频率合成系统搭配脉冲放大器阵列使用效果
The effect of frequency synthesis system with pulse amplifier array is shown in the figure
- 多频放大，多通道
- Multifrequency amplifier, multichannel

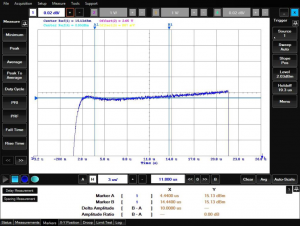

- 脉冲顶部平坦度优于01dB
- The top flatness of the pulse is better than 01dB
- 上升沿时间最快可达50ns
- The ascent time is up to 50ns at most
- 可定制多通道输出
- Customizable multichannel output
说明 Notes
该产品为定制设计产品，详细细节请联系厂家
This product is custom-designed. Please contact the manufacturer for details
